Stage backdrops are a key visual element that brings any event to life. No matter the type of setup, backdrops are a staple at conferences, lectures, and corporate events—capturing attention and setting the tone for the entire experience.
Setting up a backdrop with rear projection screens is a great way to create a clean, professional stage design.
Stage backdrops are a key visual element that brings any event to life. No matter the type of setup, backdrops are a staple at conferences, lectures, and corporate events—capturing attention and setting the tone for the entire experience.
Setting up a backdrop with rear projection screens is a great way to create a clean, professional stage design.

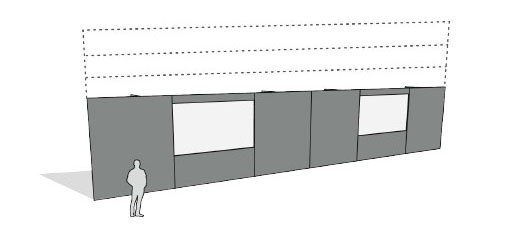

Modular Backdrop with Rear Projection Screens
Rear projection screens are screens designed to be used from behind, where a light source projects an image onto the screen to be viewed from the front. These screens are commonly used in locations where a clear and crisp image is required in low light situations.
The advantage over front projection screens is that the projection is from behind, so there are no shadows seen from the front. The disadvantage is that you need much more space behind the screen to project.
If you don’t have a lot of space in the room where you want to place your backdrop, front projection is the best option. If you have a lot of space behind the stage itself, you can choose the rear projection option.
Depending on the size of your backdrop, you can choose to use one or more screens, and you can vary the size of the screens. At AV Drop we use three standard sizes of projection screen, but they can also be made to measure. Our three standard sizes are:
↔️↕️ 350cm. x 197cm. (137.8in. x 77.56in. or 11.48ft x 6.46ft.)
↔️↕️ 400cm. x 225cm. (157.48in. x 88.58in. or 13.12ft. x 7.38ft.)
↔️↕️ 500cm. x 285cm. (196.85in. x 112.20in. or 16.40ft. x 9.35ft.)
In addition, our kits (AV Drop Pro, Starter Kit) include the necessary parts and fabrics to be able to mount two rear projection screens on your stage backdrop.
Rear Projection Screens: How Do They Work?
- Instead of projecting the image onto the front of a screen (like in front projection), the projector is placed behind the screen, and the image is projected through the screen material toward the audience.
The screen is made of a semi-translucent material that allows light from the projector to pass through while also diffusing it evenly to create a bright, clear image.
Key Features to take into Consideration
Screen Material
- Specially designed to transmit light efficiently.
- Common materials: PVC, acrylic, or diffusion fabric with a grey or frosted finish.
- Diffuses light in a controlled direction, minimizing hot spots and maintaining contrast.
Projector
Positioned behind the screen, often 6–10 feet away, depending on throw ratio.
Projects the image backward, which the screen flips and displays forward to the audience.
Projector settings must flip or mirror the image so it appears correctly on the audience side.
Lighting Control
- Control light behind the screen by keeping the rear side of the screen (where the projector is) as dark as possible to prevent image washout.
- Block lighting from behind or sides with black backing material (i.e black molton, or blackout).
- Rear projection screens are less reflective than front ones, so projector brightness matters a lot more here.
Size & Throw Distance
A 5,000–10,000 lumen projector is often needed to cut through ambient light and still look punchy.
Raise the screen slightly off the ground and black out the floor underneath to avoid ground bounce.
Screen Material
Specially designed to transmit light efficiently.
Common materials: PVC, acrylic, or diffusion fabric with a grey or frosted finish.
Diffuses light in a controlled direction, minimizing hot spots and maintaining contrast.
Lighting Control
- Control light behind the screen by keeping the rear side of the screen (where the projector is) as dark as possible to prevent image washout.
- Block lighting from behind or sides with black backing material (i.e black molton, or blackout).
- Rear projection screens are less reflective than front ones, so projector brightness matters a lot more here.
Size & Throw Distance
A 5,000–10,000 lumen projector is often needed to cut through ambient light and still look punchy.
Raise the screen slightly off the ground and black out the floor underneath to avoid ground bounce.
Projector
Positioned behind the screen, often 6–10 feet away, depending on throw ratio.
Projects the image backward, which the screen flips and displays forward to the audience.
Projector settings must flip or mirror the image so it appears correctly on the audience side.
Sign up for our newsletter and get the latest news from AV Drop!
Seamless Backdrops with Rear Projection Screens

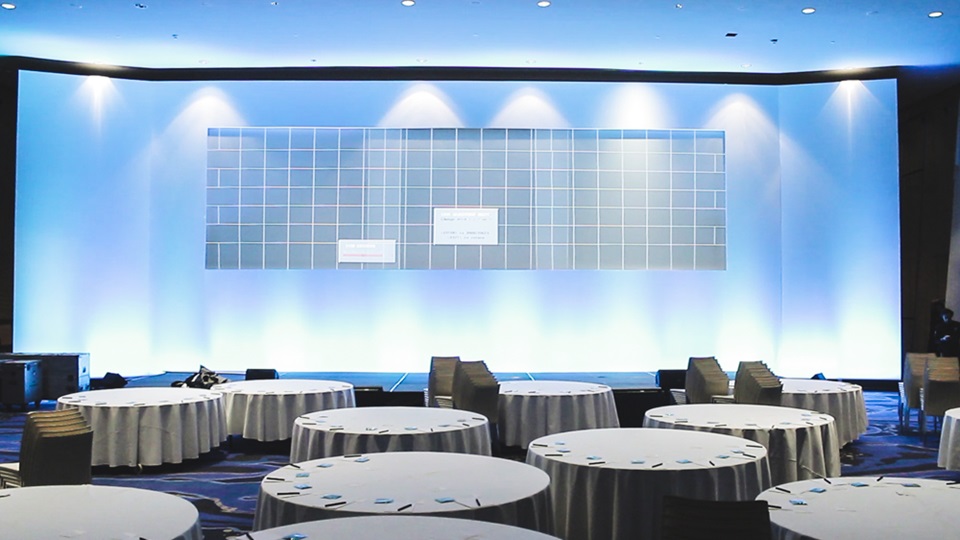

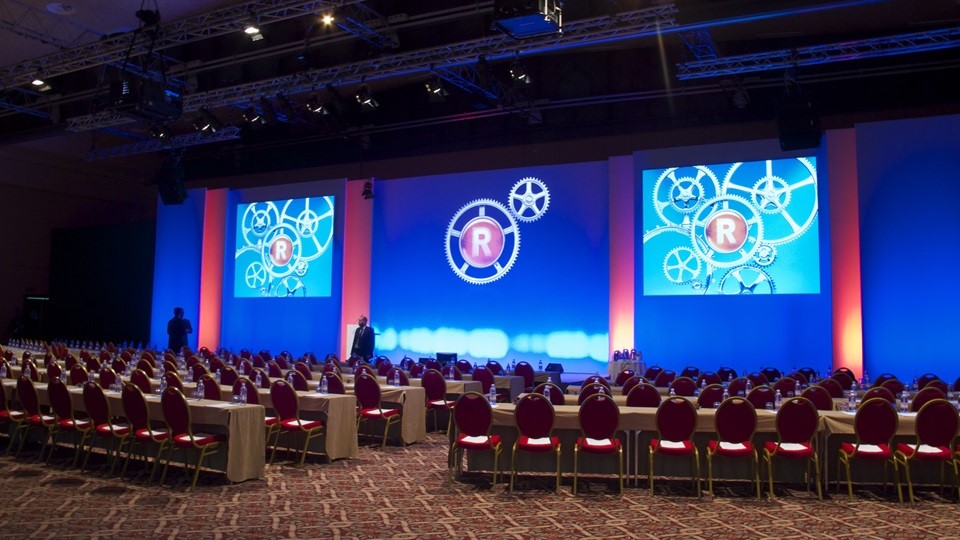

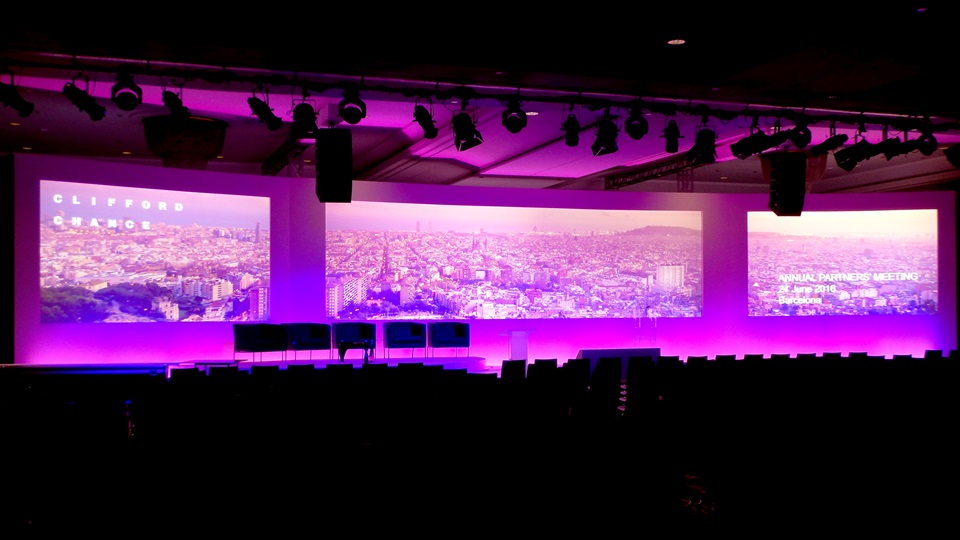

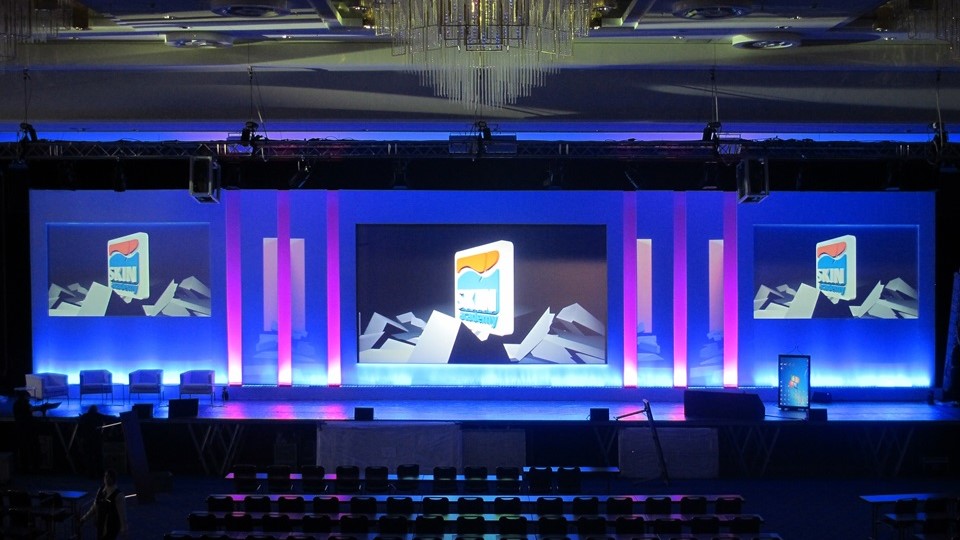

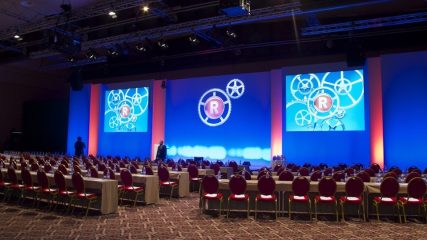

Here you can see a variety of our work, all of which are stage backdrops with rear projection screens. Each one has its own unique look and feel due to the many different ways they can be put together. They can be customised or based on a design already available from AV Drop.
Ready to Build Your Own Backdrop with Rear Projection Screens?
If you’re planning an event and need a modular, professional way to to build your rear projection screen backdrop, our modular backdrop system is the smartest solution. Let’s talk about how we can help you.
Rent or Buy – We’ve Got You Covered
Need a short-term solution? Rent a backdrop with rear projection for a single event.
Planning multiple events? Buy our modular systems and use them again and again.
Our team can help you decide the best option based on your schedule, budget, and design needs.
Need Help Planning Your Layout?
Our space design experts are here to help you plan, customize, and install the perfect rear projection screen backdrop at any scale. From minimalist to immersive, we’ll ensure your event layout enhances function and atmosphere.
Let’s Design Your Perfect Event Space
Ready to redefine your venue with stylish and functional backdrop with rear projection? Contact us today for a free consultation or quote.
The trusted choice of main players in the Entertainment and
Events industries such as Showtex, Coex & Drape Kings.
The trusted choice of main players in the Entertainment and Events industries such as Showtex, Coex & Drape Kings.
Frequently Asked Questions about Rear Projection Screens
Rear projection screens are designed to be used from behind, where a light source projects an image onto the screen to be viewed from the front. They are commonly used in locations where a clear and crisp image is required in low light situations. The advantage over front projection screens is that the projection is from behind, so there are no shadows seen from the front.
At AV Drop we use three standard sizes of projection screens, but they can also be made to measure. Our three standard sizes are:
350 cm x 197 cm = (137.8in. x 77.56in. or 11.48ft x 6.46ft.)
400 cm x 225 cm = (157.48in. x 88.58in. or 13.12ft. x 7.38ft.)
500 cm x 285 cm = (196.85in. x 112.20in. or 16.40ft. x 9.35ft.)
Yes, depending on the size of your backdrop, you can use one or more screens and vary their sizes accordingly.
✅ No Shadows ➡️ Presenters can walk in front of the screen without casting shadows.
✅ Cleaner Look ➡️ Hides cables, gear, and tech behind the screen.
✅ Better for Bright Rooms ➡️ Screens can be more visible under stage lighting than front projection.
✅ Immersive Set Design ➡️ Easily integrates into scenic backdrops or LED surroundings.
When…
✅ You Want a Clean Stage Look
✅ You Need to Avoid Shadows
✅ You Have Controlled Space Behind the Screen
✅ You’re Working with Bright Stage Lighting
✅ You Want a Higher-End Image Quality
Yes, AV Drop showcases a variety of stage backdrops with rear projection screens, each with its unique look and feel. These can be customized or based on existing designs. You can get a glimpse of different backdrop set ups in our gallery.
Contact us via our below contact form, send us an email to info@av-drop.com or call us at +34 93 300 1122. We will guide you through your project and help tailor a backdrop to your specific needs.
