AV Drop Components

Tailored for Your Visual and Structural Needs

AV Drop Components

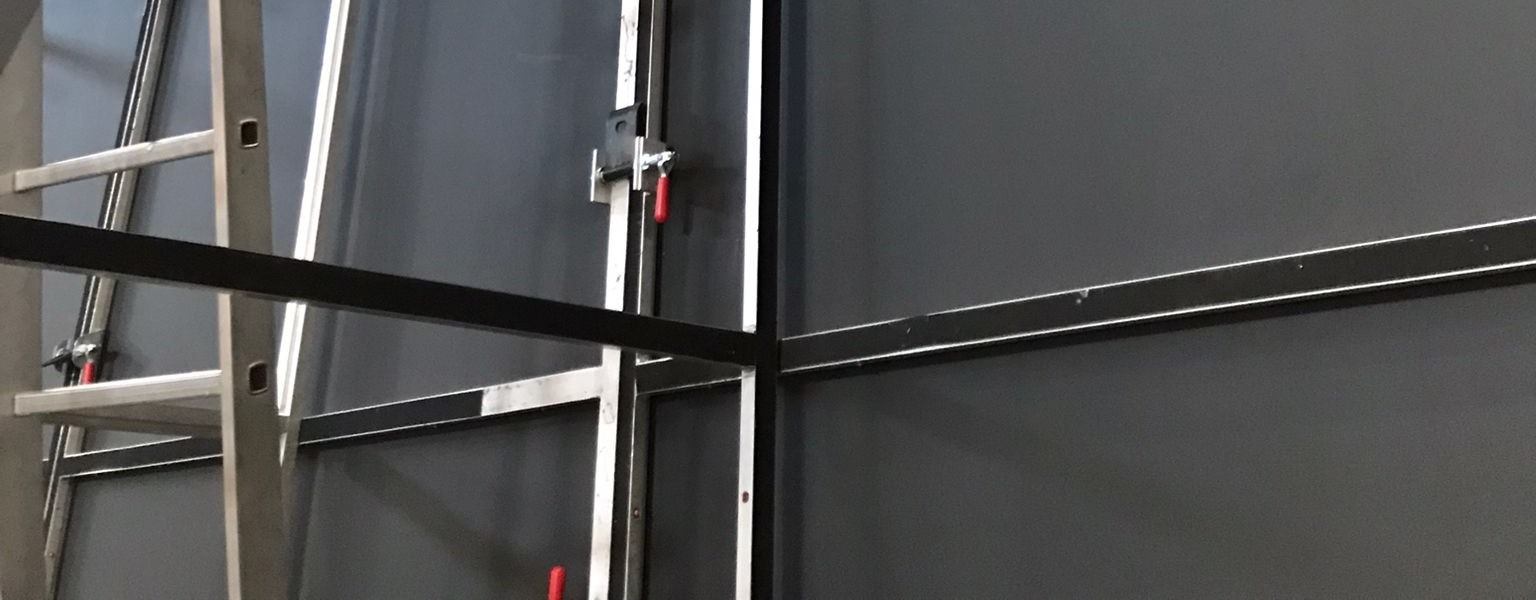

When it comes to modular backdrops, the aluminum frame is the backbone of every successful build.

Our customizable system is designed for efficiency, strength, and visual impact – ideal for events, trade shows, conferences, stage designs and corporate staging environments, amongst many other solutions and applications.

All dimensions are listed in metric units (cm).
Imperial conversions available on our Imperial Sizing page

AV Drop Components (Metric)

All dimensions are listed in metric units (cm).
Imperial conversions available on our Imperial Sizing page

Engineered Aluminum Frames for Backdrops That Perform

When it comes to modular backdrops, the aluminum frame is the backbone of every successful build. Our customizable system is designed for efficiency, strength, and visual impact – ideal for events, trade shows, conferences, stage designs and corporate staging environments, amongst many other solutions and applications.

Why Choose Our Aluminum Frame System?

✅ Tool-Free Assembly – Quick setup with patented connectors

✅ Lightweight Yet Strong – Aircraft-grade aluminum profiles

✅ Modular Compatibility – Mix and match with other AV Drop components

✅ Custom Lengths & Finishes – Tailored for your visual and structural needs

A-FRAMES

The A-Frame was the original basic component of the entire AV Drop modular backdrop system.

To create a panel with A-Frames, the system is built by using two A-Frames of matching widths, rotating and inverting one of the frames and joining them together with the use of two Union Piece (UP’s).

The A-Frame has 4 standard sizes, all of them 150cm. in length while their width can be of 25cm., 30cm., 40cm. or 60cm.

wENFQh8q2FwBAAAAABJRU5ErkJggg== - backdrop system AV drop

F-FRAMES

The F-Frame is the evolution of the original, basic, component. (A-Frame)

The F-Frame is essentially the A-Frame split in half to make a left and right half of the A.

The F-Frame is the core of the AV Drop frame system, allowing the A-Frame concept to be split and extended making a wider frame typically up to 2,5m. (250cm.) wide.

The F-Frame with or without extensions are used like the A-Frame to create panels, returns, stabilizers of varying heights and widths.

U-FRAMES

The U-Frame is a secondary building block of the system.

They are typically used to close off the top, bottom, or sides of panels, returns, and stabilizers of various heights and widths. All widths have a height of 50cm.

X, T, L, and H-FRAMES

X, T, L and H-Frames are used to create interior support and outer center support or corners.

These are typically used in front and rear projection screens, hanging panels (where weight reduction is needed), and taller or wider panels, stabilizers and lintels.

Extensions

Extensions are used with any of the frames to extend heights and widths to meet your needs. Extensions, like all frames utilize the UP, Union Piece for a quick connection. Extensions can be used either right or left, horizontal or vertical. Custom lengths are available.

Unions and Union Extensions

Unions are the universal connector of the entire system. These units connect all frame components to each other. Union Extensions are incremental connectors when lengths of less than 35cm are required – i.e.: for projection screens.

Radius & Angles

Radius Curves

The Radius Curve frame is a secondary component and is used to create alternate shapes and visual interest in designs. 4 units can be used to create a complete circle.

w9z71ailfEz9gAAAABJRU5ErkJggg== - backdrop system AV drop

Angle Frames

The Angle frame is an advanced design tool. It creates profiles and shapes that extend the creativity of the system. Each 180 degree set of angles utilize left and right Center T supports to allow for building large stable panel sizes.

Corner angles are 25cm X 25cm, “T” angles are 60cm long side, 45,7 cm on horizontal side.

0dJSQm1atWq8HNU0ouIiIiIiIiIiIiImESb9CIiIiIiIiIiIiIiJlFJLyIiIiIiIiIiIiJiEpX0IiIiIiIiIiIiIiImUUkvIiIiIiIiIiIiImISlfQiIiIiIiIiIiIiIiZRSS8iIiIiIiIiIiIiYhKV9CIiIiIiIiIiIiIiJlFJLyIiIiIiIiIiIiJiEpX0IiIiIiIiIiIiIiIm+X+XtoFYZrBzYAAAAABJRU5ErkJggg== - backdrop system AV drop

AV Drop Clamps

AV Drop Clamps are at the heart of the modular backdrop system. These simple, fixed, pressure fit units allow for interior and exterior corners, specialty connections and rigging. When used overhead, they come equipped with standard safety cables.

Screen Brackets

Screen Brackets are another component of the toolless system assembly that allows for front hanging AV Drop and most fast fold style screen.

The brackets are placed in between vertical frame sections, locked in place, and used to support both front projection screens and graphic panels known as gallery-drop.

The brackets are designed to support AV Drop frames but work with most competitive major projection screen brands.

k5GR7OyAgQDYbCwpzmqtXr9qXtNpsNgUEBFickesozgEAAAAAAAAWoUQMAAAAAAAAWITiHAAAAAAAAGARinMAAAAAAACARSjOAQAAAAAAABahOAcAAAAAAABYhOIcAAAAAAAAYBGKcwAAAAAAAIBFKM4BAAAAAAAAFqE4BwAAAAAAAFiE4hwAAAAAAABgEYpzAAAAAAAAgEUozgEAAAAAAAAWoTgHAAAAAAAAWITiHAAAAAAAAGARinMAAAAAAACARSjOAQAAAAAAABahOAcAAAAAAABYhOIcAAAAAAAAYBGKcwAAAAAAAIBFKM4BAAAAAAAAFqE4BwAAAAAAAFiE4hwAAAAAAABgEYpzAAAAAAAAgEX+D7bQqPjPm2t1AAAAAElFTkSuQmCC - backdrop system AV drop

Weights

Our 15Kg. BFW (bracket for weight) are the perfect solution for all weight and counterweight applications.
